Series 931201

SPDT Electromechanical Relay, DIN Rail,

Contact 16A @240V

Coil Selection:  12, 24, 120V

• Flag LED Indicator shows relay status

• Silver Alloy, Gold Flashed Contacts

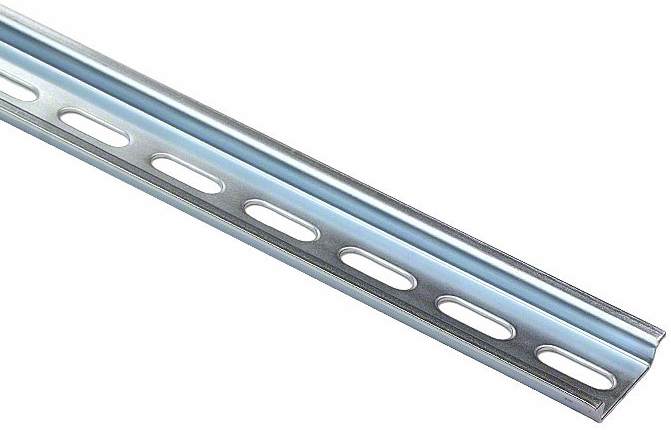

   DIN rails

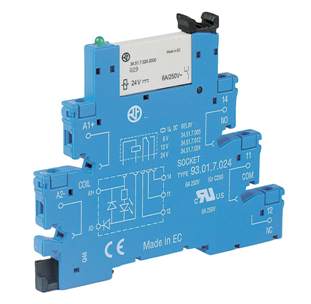

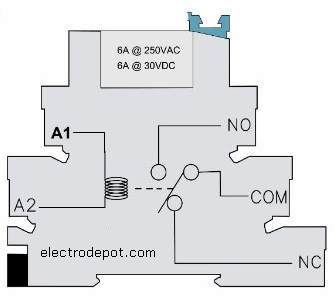

Series 931209

Ultra Slim DIN 0.25" (6mm)

SPDT Electromechanical Relay,
DIN Rail Mount

Contact 6A @240V

Coil Selection:  12, 24VDC,  120VAC
Power consumption 0.3W DC, 1.VA AC

• Flag LED Indicator shows relay status

• Silver Alloy, Gold Flashed Contacts

DIN rails

• Plug-in relay, DIN mount base (included)
• 15 A. General purpose
• 10 A. Tungsten
• 8 A.  Ballast
• Coil Consumption,  1.4 W
• UL C9805 CSA, CE approved)
  8 Pin plug-in socket included

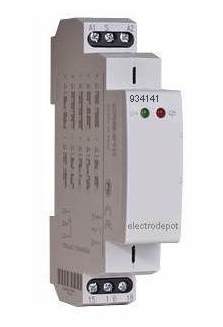

934141 Mechanical Memory Latching Relay

•Retains status on power failure
•DIN Rail Mount,
•Universal power supply, Voltage: 12-240VAC/DC,
•Max power consumption: AC 3VA, DC 1.2W
•Relay output 16A SPDT,240VAC, 30VDC Class 2

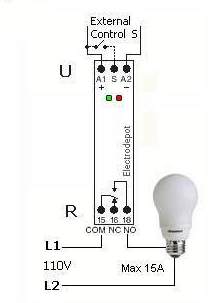

Momentary closure of the terminals A1 and S will latch the relay. ON
A subsequent momentary closure will unlatch the relay OFF

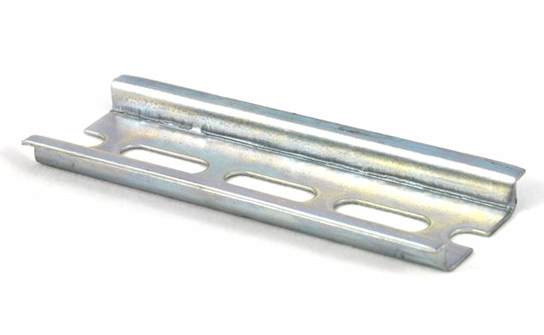

10cm. Steel DIN rail 35x75 mm
