Industrial
wireless monitoring and control,
10
Miles (16km)
line of sight
PERFORMANCE
•
10 Miles ( 16 km ) line of sight
w Hi-Gain antenna
•
Power option 120/240VAC, 12 or 24VDC
•
Encoded 16 bits with 65,536 codes
•
Simple
DIP switch programming
setup
•
System is Solar Ready, 12VDC operation
•
Unlimited transmitter and receivers can be
added
COMPLIANCE: per
FCC Part 15.249, 50mV/m @ 3m
Circuit board Compliance with UL796 and
UL 94
MIL-STD-461E
for
Electro-Magnetic
Interference
(EMI)
MIL-STD-901D
Grade A for High
Impact Shock
MIL-STD-167B
for Vibration
SPECIFICATIONS
Transmitter
Input: Dry Contact
Receiver Output SPDT
relay 6Amp, 240V, Class 2
Operation frequency: 27
MHz digital encoded, industrial band
Operating Temperature: -4° to +140° F (-20° to +60° C)
Dimensions
9 x 9 x 4. in. /
300 x
300 x 100 mm
Operation voltage: 12VDC
Power: Transmitter standby >0.001 mA, energized 2A (1 Sec.),
Short pulse
transmission comply MIL standard
Power draw: Receiver
standby 30mA, energized 120mA
Antenna 50 ohm,
|
|
Antenna sold
separately |

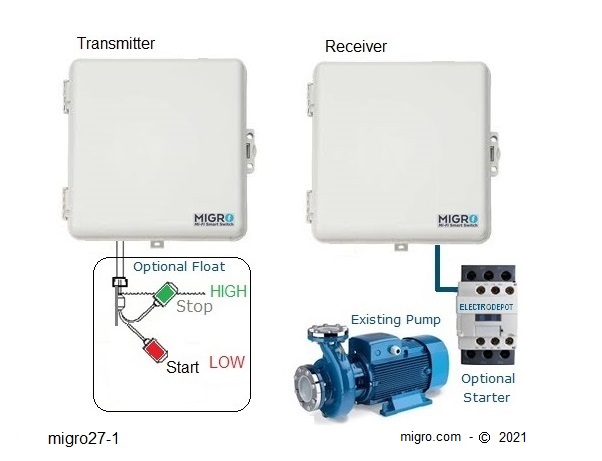

Migro27-1
Single channel
configuration
Operation:
At low level the transmitters send a
command to the receiver to Start or
close the control relay,
Once the High
level at the setting on the transmitter
is reached then the control relay
opens
Part
927012 12VDC
Part
927017 120/240VAC
■
Request a Quotation
|
|
|
|
|
Antenna sold
separately |

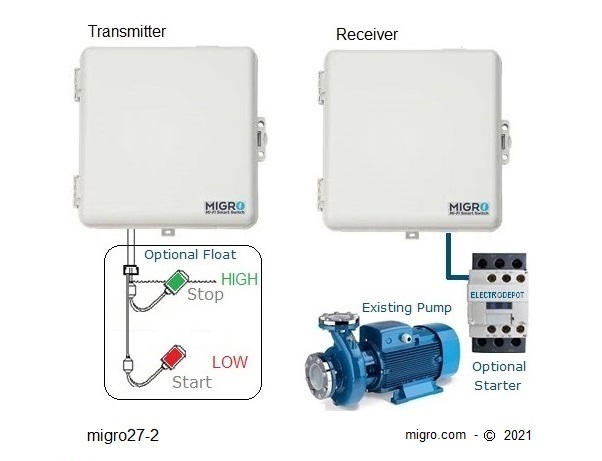

Migro27-2
Two
channel
configuration
Operation:
At low level the transmitters Channel 1
send a command to the receiver
Channel 1
to Start or close the control relay,
Once the High
level is reached the Channel 2 at
the transmitter send a pulse
to
the receiver Channel 2 to Stop or
open the control relay
Part
927212 12VDC
Part
927217 120/240VAC
■
Request a
Quotation
|
|
|
|
|
|
| |
|
 |

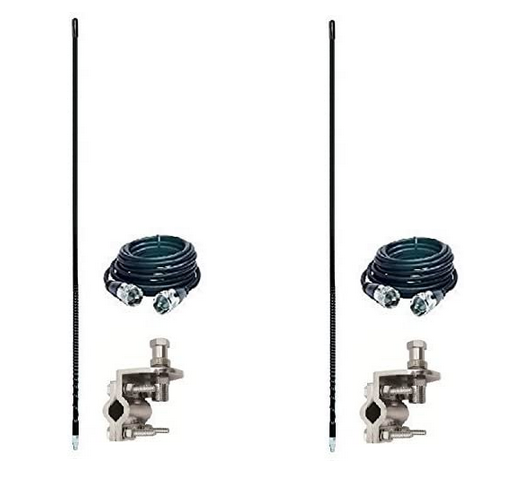

27MHz Omni Antenna
36 inch
Quarter Wave
|
Frequency |
26-28 MHz |
|
Gain |
2 dBi |
|
Vertical Beam |
30
degrees |
|
Impedance |
50
Ohms |
|
Connector |
SO-239 |
| Max
Power |
150
Watts |
|
VSWR |
<
1.5:1 avg. |
|
Polarization |
Vertical |
|
Wind Data |
150
mph |

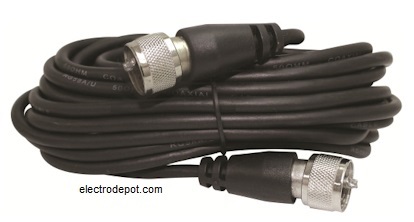

10Feet of 50 ohm coaxial cable
with connectors
and mounting kit
|
|
Accessories:
|
|
|
|
|
|
DISCLAIMER:
Contact a licensed professional for your project.
Warning:
Radio control equipment is not to be used in life safety | |
