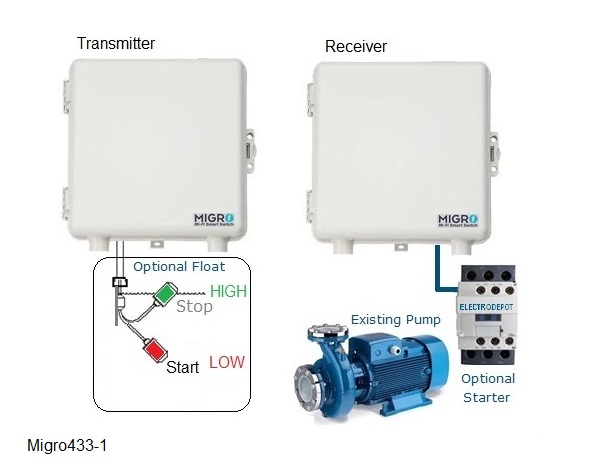

Single Channel
Performance
•
360m (1200ft)
line-of-sight w 6 inch antenna
• Operation: 120/240VAC or 12VDC
•
Transmitter input N/O Dry contact
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial
ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
■
Specifications
Operation:
Channel 1 Closure
Output 1 ON
Channel 1 Opening Output 1 OFF |
Migro433-1
Budget Radio system
Part
943312 12VDC
Part
943324 24VDC
Part
943327 120/240VAC
■
Request a
Quotation
|
|
.
| Supply power |
12 VDC @
400 mA |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
2.2 lb (1.10kg)
each unit |
| Dimensions |
9 x
9 x 3.5
in. /
(200.00 x 200.00 x 100.00 mm) |
|
Specifications Digital Receiver
|
| Supply power |
12 VDC @
300 mA |
|
Output |
Relay SPST contact
6.Amp, 30V/240vac
Class 2 pilot duty |
| Frequency |
433 MHz •
License free Industrial ISM band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Relay Terminals |
| Antenna Z |
50 Ohm SMA RF connector |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
Weatherproof
IP65, UL94-5VA, |
|
 |
System
is supplied with:
Two
7 inch
Omni
Short Range
Magnetic Mount Antenna and 5 Ft cable |
|
|

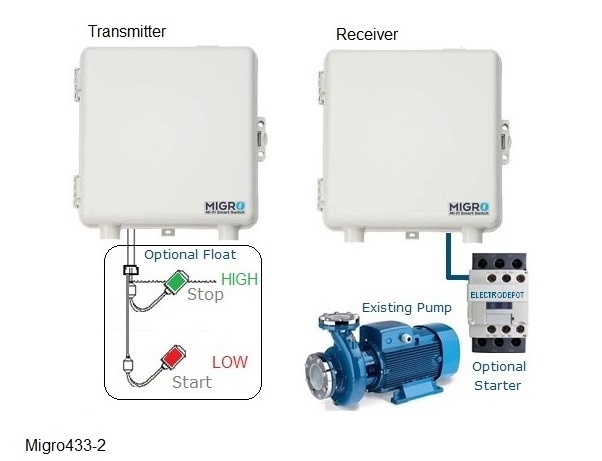

Start Stop - 2 Channel
|
|
Operation : •
Channel 1
Closure Starts Output 1 ON
•
Channel 2
Closure
Stops Output 1 OFF
■
Specifications |
Migro433-2
Part
943341 12VDC
Part
943342 24VDC
Part
943347 120/240VAC
■
Request a
Quotation
|
Antenna Selection (
TWO are required ) |
|
 |
938432 Yagi antenna 3 E
7 dBi
2 Mile+
Length: 18", Weight:
1.lb
with 10 ft coax cable and connector
Antenna Selection
|
|
|
 |
938438 Omni directional
antenna
3 dBi 1 Mile+
Length: 37", Weight: 3.lb
with 10 ft coax cable and
connector
Antenna Selection |
|
|

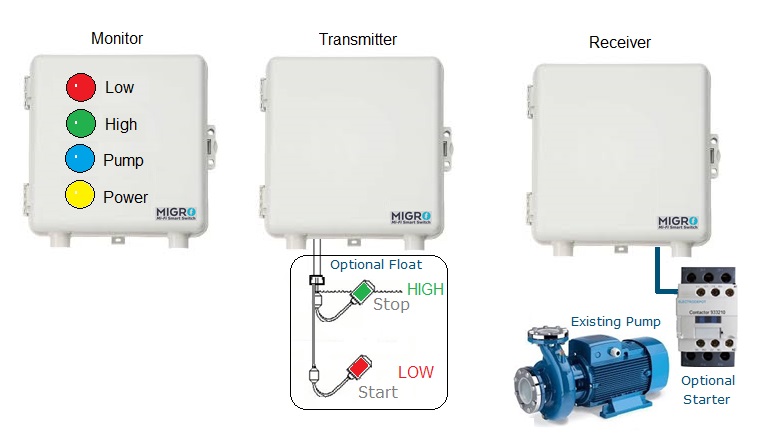

migrocom 4 Control and Monitoring
4 Channel
 |
|
|
